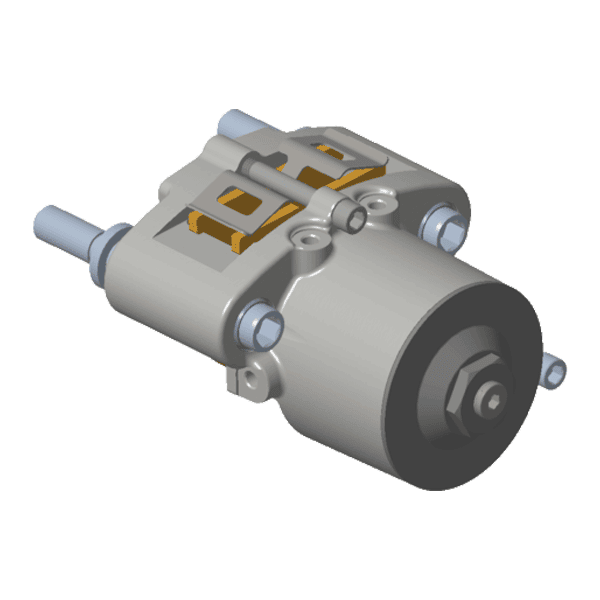

M100 Integrated SAHR
- Capable of 10,000 lbs. parking clamp force
- Actuation mechanism is sealed from the environment
- Durable iron housing
- Self-adjusting mechanism maintains consistent clamp force
- Eliminates required pad adjustment by end user
- Minimizes warranty due to end user interface
- Compact size ideal for driveline mounting
- Positive pad retention & retraction
- Common tool manual release access
Vehicle Category:
Markets:
| Weight | ~35.5 lbs. |
|---|---|
| Rotor Diameter | 10 in. to 30 in. |
| Rotor Thickness | 0.375 in. to 1.35 in. |
| Lining Type | Sintered |
| Total Lining Area Per Pad | 6.75 sq. in. |
| Min Hold-off Pressure | 1,450 PSI |
| Max Operating Pressure | 3,000 PSI |
